Stoneburier
Removes rocks and weeds to create an ideal turf foundation

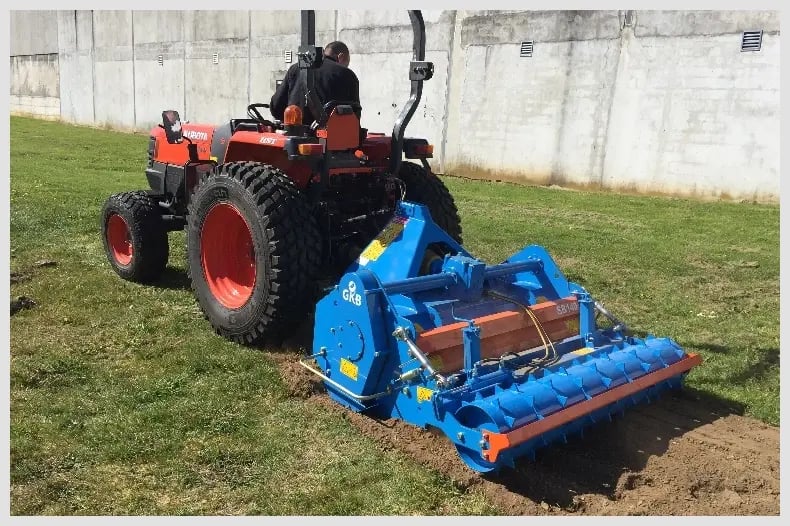

The GKB Stoneburier is an efficient milling machine that separates stones from soil, creating a smooth, homogeneous top layer for optimal turf growth. It’s the perfect first step for natural grass sports fields and golf courses.
Features

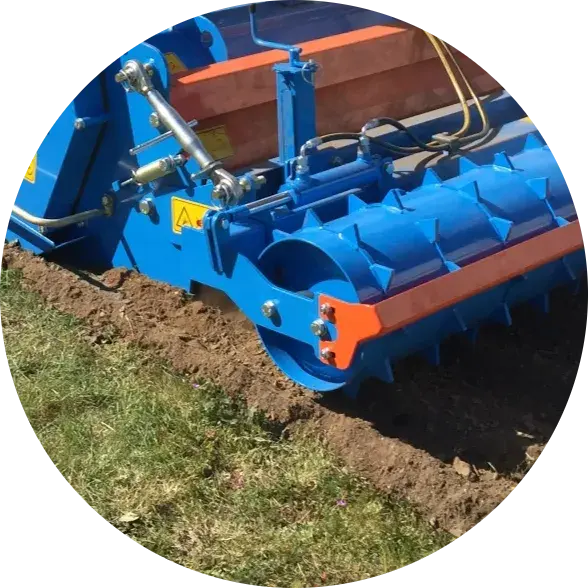

Integrated stone separator

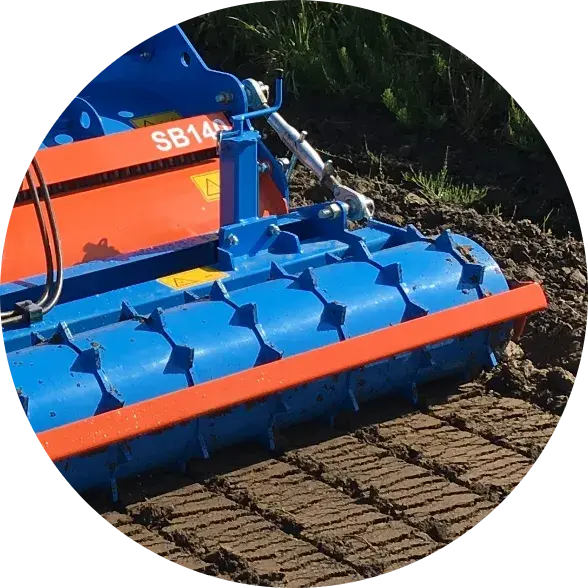

Adjustable rear roller

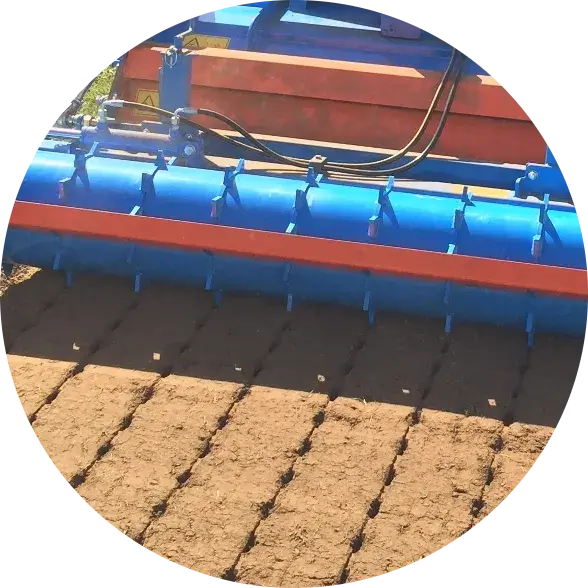

Max depth of 17 cm

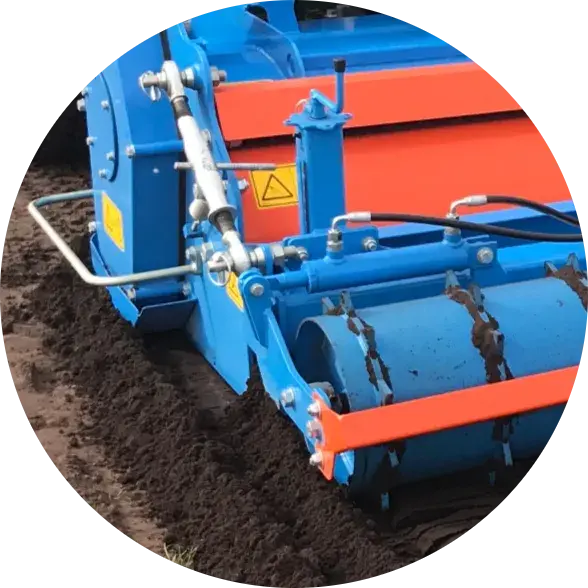

Water-fillable for added weight

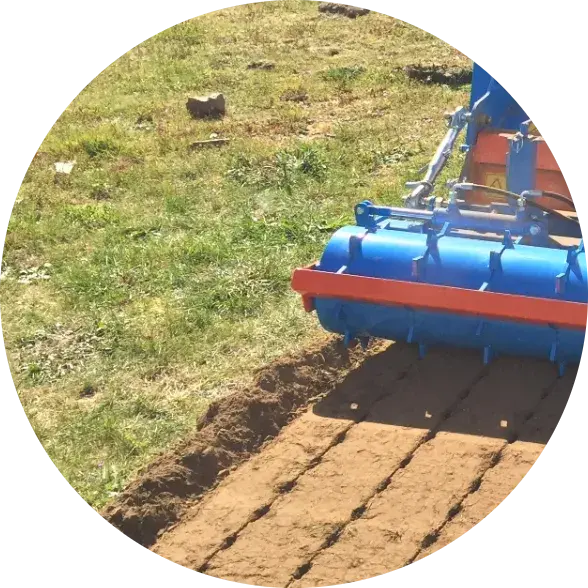

Dual spindle depth control

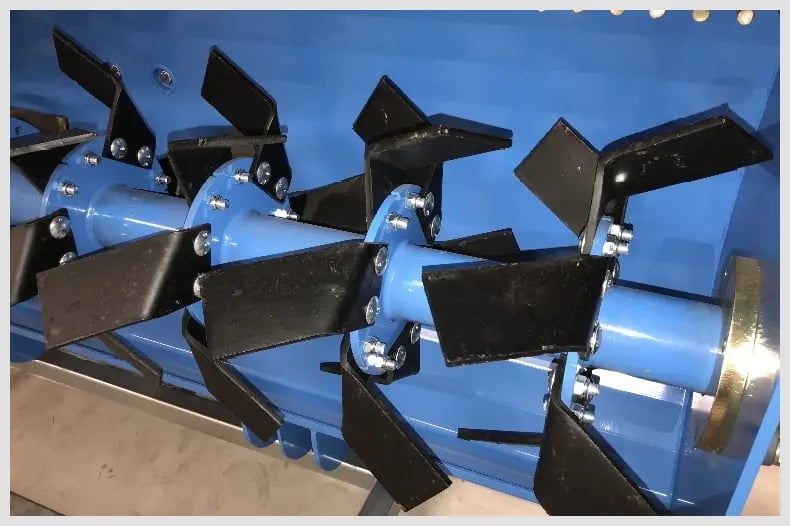

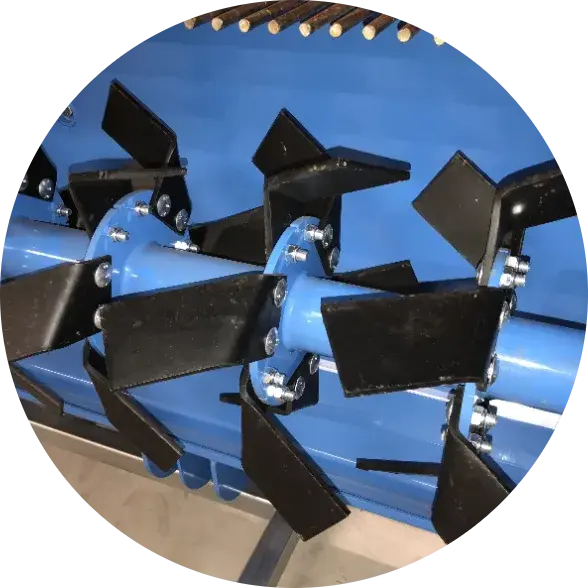

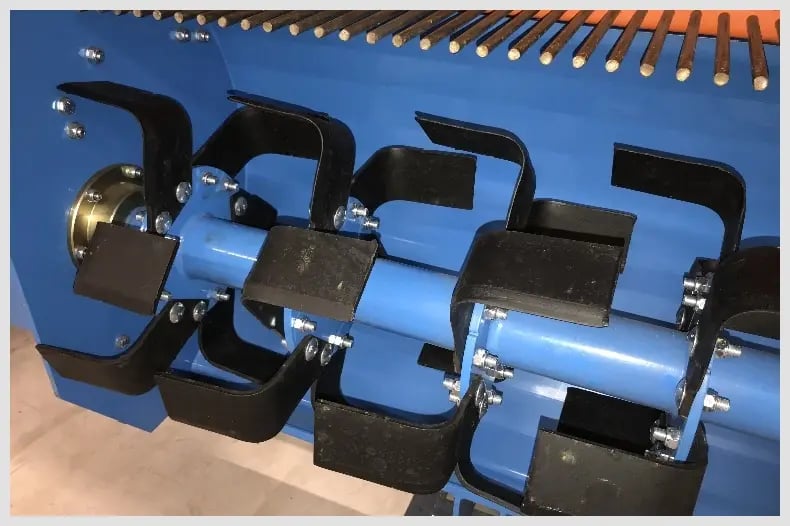

Two blade options
Gallery
Specs
| Type | Working width | Working depth | Dimensions (LxWxH) | Weight | Power requirement |
|---|---|---|---|---|---|

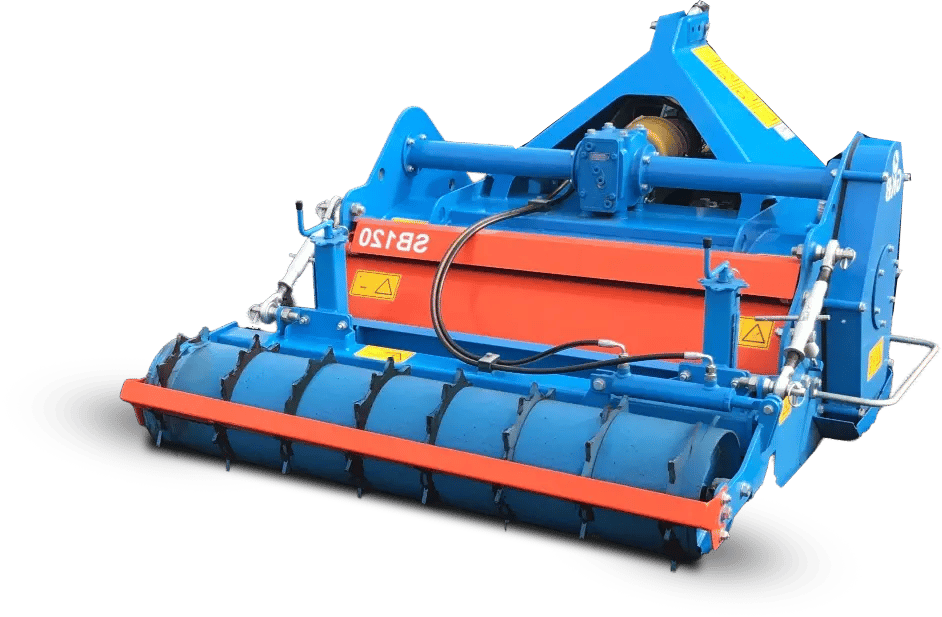

| SB120 | 120 cm / 47" | 0 - 17 cm / 0 - 7" | 180 x 160 x 110 cm / 71 x 63 x 43" | 500 kg / 1105 lbs | 20 - 40 hp |
| SB140 | 140 cm / 55" | 0 - 17 cm / 0 - 7" | 180 x 180 x 110 cm / 71 x 71 x 43" | 600 kg / 1325 lbs | 35 - 50 hp |
| SB160 | 160 cm / 63" | 0 - 17 cm / 0 - 7" | 180 x 200 x 110 cm / 71 x 79 x 43" | 700 kg / 1545 lbs | 40 - 55 hp |
| SB180 | 180 cm / 71" | 0 - 17 cm / 0 - 7" | 180 x 220 x 110 cm / 71 x 87 x 43" | 800 kg / 1765 lbs | 50 - 70 hp |
| SB200 | 200 cm / 79" | 0 - 17 cm / 0 - 7" | 180 x 250 x 110 cm / 71 x 98 x 43" | 885 kg / 1955 lbs | 55 - 75 hp |
HOW IT WORKS
The Stoneburier mills the soil surface to a maximum depth of 17 cm. Behind the rotor, a built-in sieve separates stones from loose soil, pushing the heavier material below the surface while leaving a fine, stone-free layer on top. A rear roller then presses the newly prepared surface (lightly or firmly, depending on your preference) to create a level, consistent seedbed ready for turf establishment.
WHAT MAKES IT DIFFERENT
Unlike standard cultivation tools, the GKB Stoneburier is built for turf prep, combining user-friendly design with professional-grade results. The rear roller is both hydraulically adjustable and water-fillable, giving you complete control over compaction and surface finish. Designed in collaboration with contractors, it’s a rugged and refined machine trusted by field managers worldwide. If you want to eliminate rocks and improve turf density, the Stoneburier delivers a fast, effective solution.
