MULTISPREAD 410 SP

Self-propelled topdresser for sand, soil, and compost.

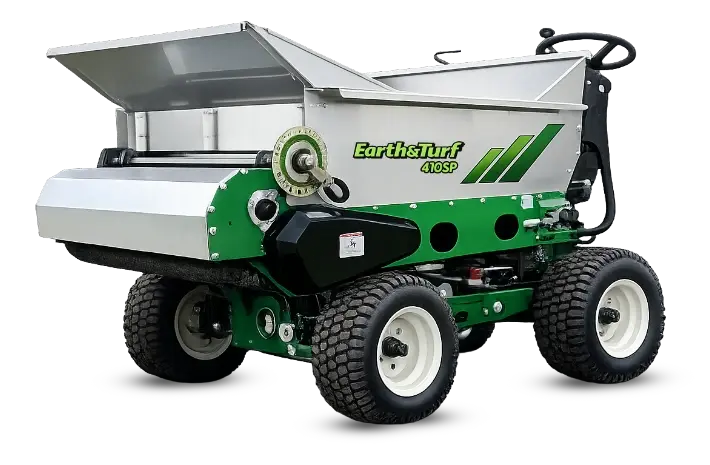

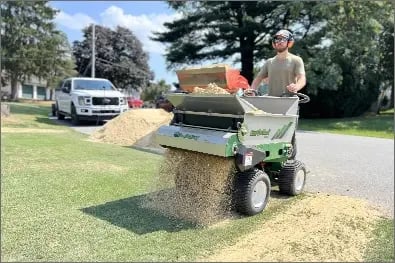

MultiSpread 410 SP

MultiSpread 410SP is a compact stand-on topdresser that applies consistent layers of sand, compost, and soil blends across natural grass surfaces. Its 4-wheel drive and brush expeller system deliver even coverage while maintaining excellent maneuverability in tight spaces, edges, and narrow access areas.

Features

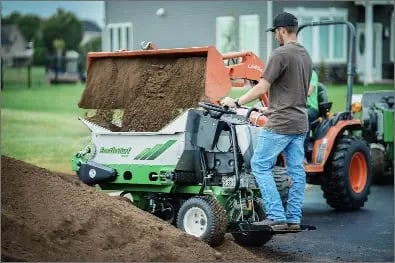

Loading-a-Stand-on-410SP-Topdresser-Compost-Spreader-in-Massachusetts-edited-1-scaled

Wide Loading Chutes Allow Fast, Clean Material Filling.

410-Brush-Expeller-Topdresser-edited-scaled

Brush Expeller Spreads Material Evenly Across Surface Width.

Honda-GXV390-Engine-410SP-scaled

Honda Gas Engine Provides Consistent Spreading Performance.

Up to 23 cm depth

Wide Tires Protect Grass While Carrying Full Loads.

Field-length sand coverage

Access Ports Simplify Cleaning Beneath Conveyor Belt.

belt-tightening-adjustment-on-the-410-SP-scaled

Adjust Belt Tension For Consistent Material Movement.

Gallery

Specs

Capacity Max Load Weight Box Width Total Width Width At Tires Total Length Total Height Loading Height Spread System Spread Thickness Spread Width Unit Weight Gross Weight Safe Slope Sideways Safe Slope Up/Down Max Speed Engine Drive Main Pump
8 cu. ft. Struck/ 12 cu. ft.Heaped800 lbs. (362.9 kg)30 inches (76.2 cm)35.75 inches (90.81 cm)34 inches (86.36 cm)84 inches (213.36 cm)48 inches (121.92 cm)36″ (91.44 cm) side of box/42″ (106.68 cm) top of load chuteStiff Bristled Rotating Expeller BrushUp to 1/2 in. (1.27 cm)30 inches (76.2 cm)830 lbs. (376.5 kg) 1,830 lbs. (830 kg)5°16°5 MPH (8.05 km/h)13 HP Honda GXV 3904 Wheel Hydrostatic MotorsHydro-Gear PK Pump

HOW IT WORKS

Material is loaded into the hopper and distributed using a rotating brush expeller that spreads sand, compost, or soil evenly across the surface. The hydrostatic 4-wheel drive system allows smooth speed control while the adjustable end gate regulates material depth, ensuring consistent topdressing coverage even around obstacles and confined areas.

WHAT MAKES IT DIFFERENT

The compact stand-on design improves efficiency by combining maneuverability with consistent spreading performance. Its narrow width allows access through gates and tight pathways, while 4-wheel drive and steering provide precise control when working along edges, corners, and irregular field layouts.
