Fairway Trencher



Fairway_Trencher

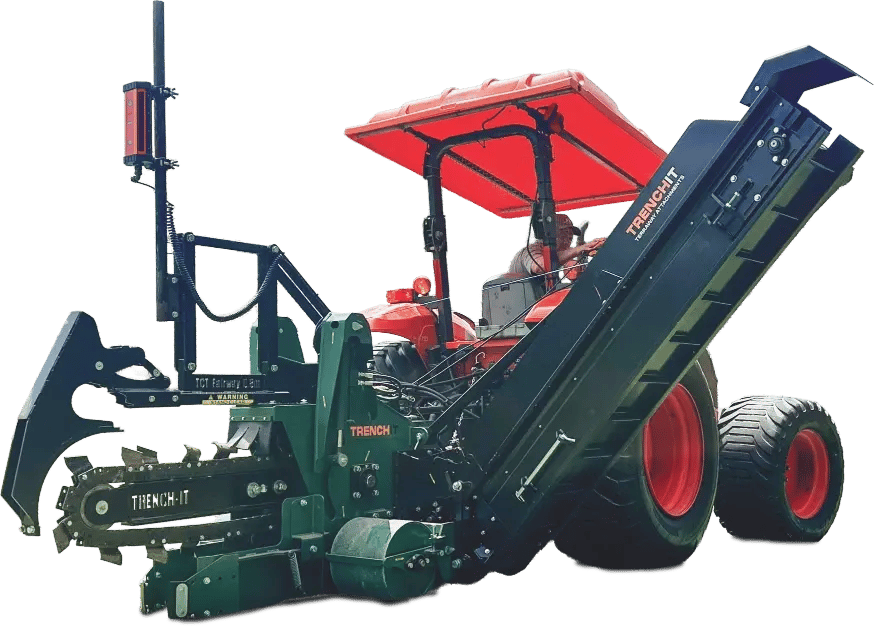

The TCT Fairway Trencher is a professional‑grade, PTO‑powered trenching machine designed for drainage and irrigation installations on golf courses, sports fields, and athletic turf. Built for robust performance, it delivers clean, consistent trenches with minimal disruption to surrounding turf.

Features

Adjustable_Digging_Depths

Adjustable Digging Depths Up To 800 Mm Or 1000 Mm For Versatile Trenching

Multiple_Digging_Widths

Multiple Digging Widths: 75 Mm, 100 Mm, 150 Mm, 200 Mm

Heavy_Duty_Wear

Heavy‑Duty Wear Parts With Tungsten Carbide Cutting Teeth

Efficient_Double_Conveyor_System

Efficient Double Conveyor System For Fast Soil Removal

PTO_Drive_With_Slip_Clutch_Protection

PTO Drive With Slip Clutch Protection For Tractor And Trencher

Crumber_Bar_Grades_Trench_Bottom

Crumber Bar Grades Trench Bottom For A Smooth Finish

Gallery

Specs

Type Working width Working depth Dimensions (LxWxH) Weight Power requirement
VS120 120cm / 47” 0-5 cm / 0-2" 140 x 165 x 100 cm / 55 x 65 x 39" 350 kg / 775 lbs > 40 hp
VS160160 cm / 63" 0-5 cm / 0-2" 160 x 205 x 110 cm / 63 x 81 x 43" 500 kg / 1105 lbs > 45 hp
VS200200 cm / 79" 0-5 cm / 0-2" 170 x 245 x 110 cm / 67 x 97 x 43" 750 kg / 1655 lbs > 65 hp
VS240 240 cm / 94" 0-5 cm / 0-2" 170 x 280 x 110 cm / 67 x 112 x 43" 900 kg / 1985 lbs > 90 hp

HOW IT WORKS

The TCT Fairway Trencher attaches to a tractor’s PTO and uses a robust chain trencher system to cut into the turf and underlying soil. You can choose digging depth and width based on project needs, whether installing subsurface drainage or irrigation pipe. As the chain cuts, an integrated conveyor lifts the excavated soil onto a trailer or truck alongside the trencher, minimizing cleanup time and leaving a neat, consistent trench.

WHAT MAKES IT DIFFERENT

What sets the TCT Fairway Trencher apart is its balance of strength, versatility, and durability. Its adjustable trenching depths and widths allow precise customization for varying soil conditions and field demands. The double conveyor system makes debris handling efficient, and the robust PTO and slip clutch design protects both tractor and trencher during heavy use. This machine is built to perform reliably on golf courses and sports fields while minimizing impact on turf quality.
