Sandspreader
Evenly distributes sand or topdressing for healthy, playable turf
The GKB Sandspreader is a precision topdressing machine designed to evenly distribute sand and other materials across golf courses. With a highly configurable design and consistent spreading output, it's a must-have for construction and ongoing maintenance.
Features

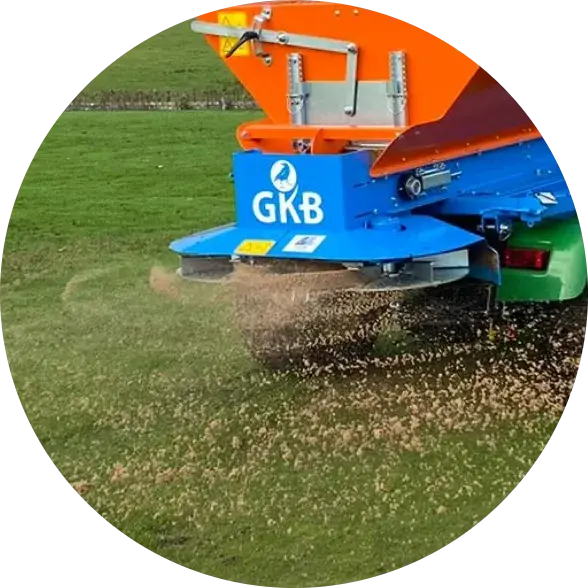

Precision spreading discs

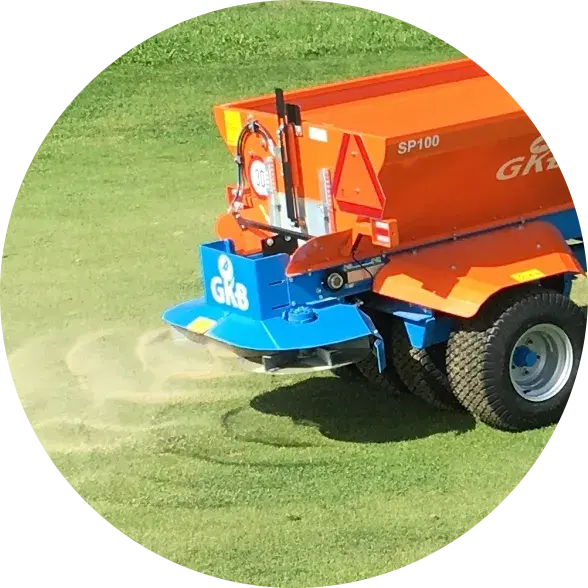

Adjustable conveyor speed

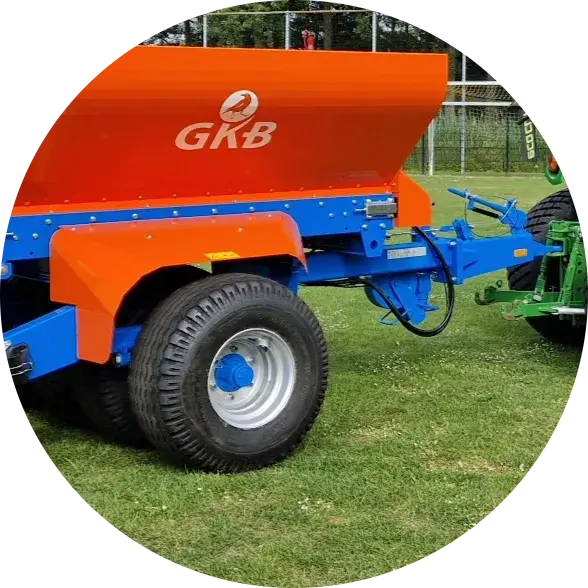

Stable wheelbase design

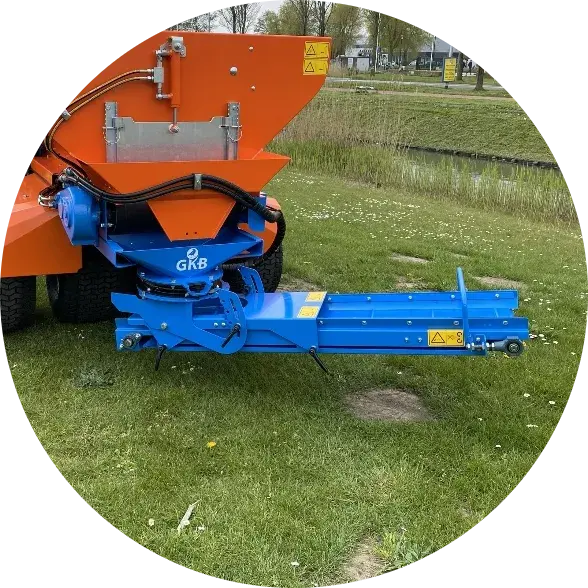

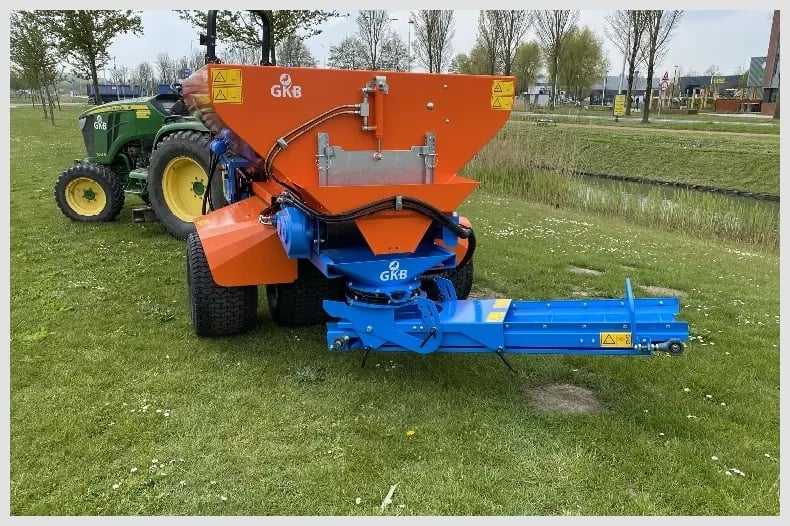

Optional discharge belt
Road-legal configuration

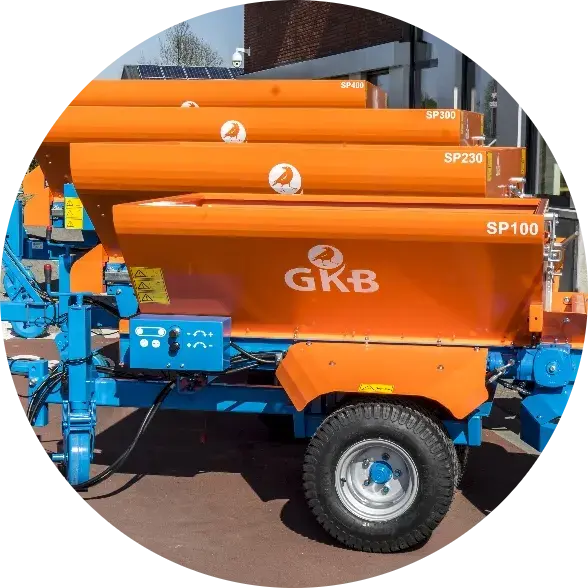

Custom build options

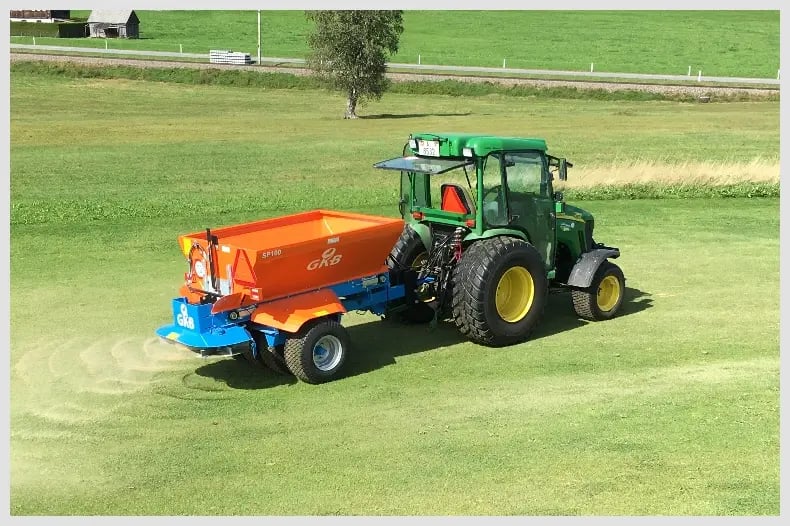

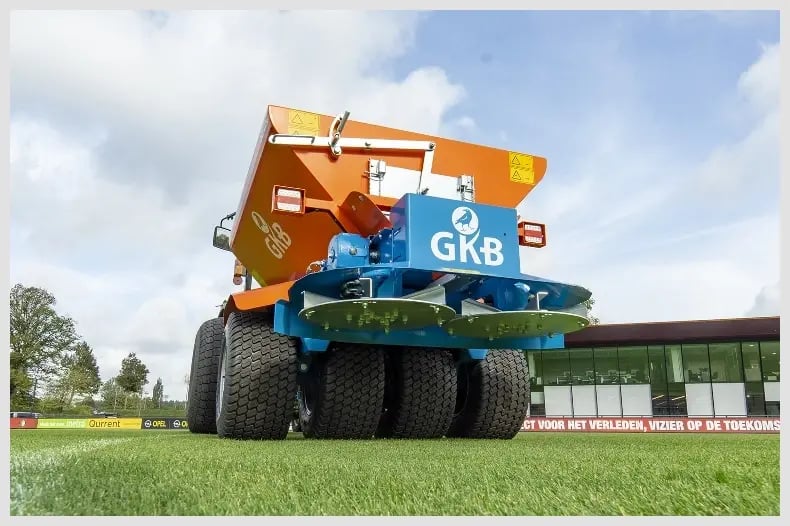

Gallery
Specs
| Type | Working width | Bunker capacity flat filled | Dimensions (LxWxH) | Weight | Dimensions with brakes (LxWxH) | Weight with brakes | Power requirement |
|---|---|---|---|---|---|---|---|
| SP100 | 2-10 m | 1,0 m³ / 35 ft³ | 320 x 150 x 140 cm / 126 x 59 x 55" | 700 kg / 1543 lbs empty | - | - | >20 hp |
| SP100 mounted | 2-10 m | 1,0 m³ / 35 ft³ | 235 x 150 x 130 cm / 93 x 59 x 51" | 450 kg / 992 lbs empty | - | - | >20 hp |
| SP230 | 2-12 m | 2,3 m³ / 81 ft³ | 440 x 190 x 160 cm / 173 x 75 x 63" | 1080 kg / 2380 lbs empty | 450 x 215 x 185 cm / 177 x 85 x 73" | 1160 kg / 2560 lbs empty | >30 hp |
| SPM230 | 2-12 m | 2,3 m³ / 81 ft³ | 470 x 205 x 190 cm / 185 x 81 x 75" | 1180 kg / 2600 lbs empty | 510 x 220 x 190 cm / 201 x 87 x 75" | 1260 kg / 2780 lbs empty | >30 hp |
| SP300 | 2-12 m | 3,0 m³ / 106 ft³ | 515 x 190 x 185 cm / 203 x 75 x 73" | 1480 kg / 3260 lbs empty | 525 x 215 x 185 cm / 207 x 85 x 73 lbs" | 1550 kg / 3420 lbs empty | >40 hp |
| SPM300 | 2-12 m | 3,0 m³/ 106 ft³ | 540 x 210 x 190 cm / 213 x 83 x 75" | 1580 kg / 3485 lbs empty | 570 x 215 x 190 cm / 225 x 85 x 75 lbs" | 1650 kg / 3640 lbs empty | >40 hp |
| SP400 | 2-12 m | 4,0 m³ / 141 ft³ | 520 x 235 x 205 cm / 205 x 93 x 81" | 1520 kg / 3350 lbs empty | 530 x 255 x 205 cm / 209 x 101 x 81 lbs" | 1600 kg / 3530 lbs empty | >60 hp |
| SPM400 | 2-12 m | 4,0 m³ / 141 ft³ | 540 x 235 x 205 cm / 213 x 93 x 81" | 1620 kg / 3570 lbs empty | 570 x 255 x 205 cm / 225 x 101 x 81 lbs" | 1700 kg / 3750 lbs empty | >60 hp |
HOW IT WORKS

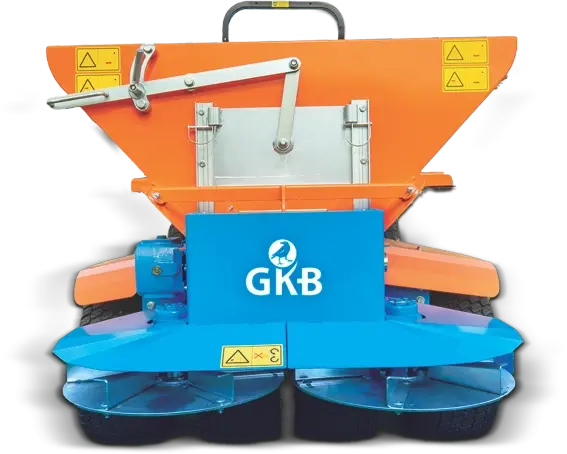

The Sandspreader operates with a simple, effective mechanism. Sand is loaded into the hopper, where an internal conveyor belt feeds it onto two hydraulically driven spreading discs. These discs rotate to distribute the material evenly across the surface. With mesh controls and variable belt speed, the machine ensures uniform coverage that supports proper drainage, oxygen flow, and root health; making it ideal for use after aeration or scarifying.
WHAT MAKES IT DIFFERENT
Built for efficiency and flexibility, the Sandspreader features a sturdy wheelbase for excellent weight distribution and stability on uneven surfaces. The sloped hopper offers visibility and flow, while optional add-ons like a swinging wheelset, lockable valves, and a discharge belt give you even more control. It can be mounted on turf trucks or tractors, and models with road approval include LED lighting, a braking system, and a bumper, allowing safe transport between sites. Whether you're maintaining a golf green or refurbishing a soccer pitch, the Sandspreader is tailored to meet your exact sanding needs.
