Sandfiller
Scarifies, removes debris, fills with sand and reseeds in one pass
The GKB Sandfiller is a precision turf care machine that scarifies, removes organic matter, fills grooves with sand, and optionally reseeds; all in a single pass. Ideal for greens and fairways, it helps professionals maintain healthy, playable turf with minimal labour.
Features

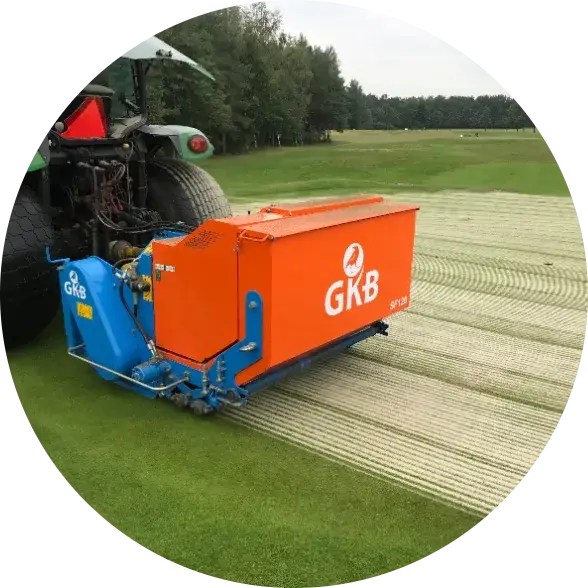

One-pass scarify & fill

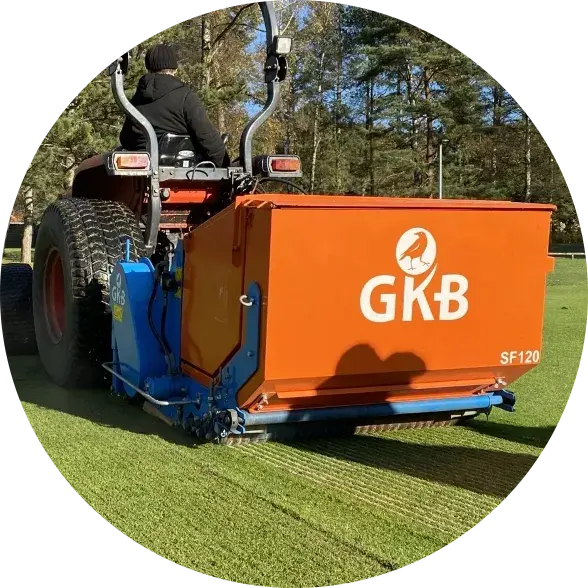

Optional reseeding system

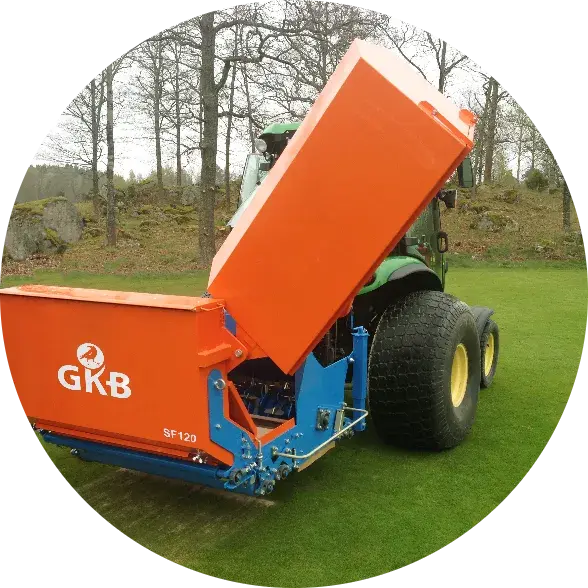

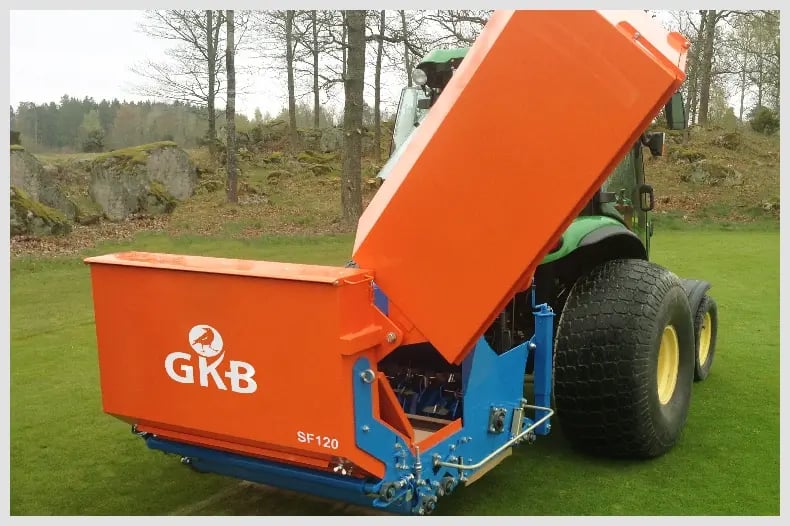

Side-tipping debris container

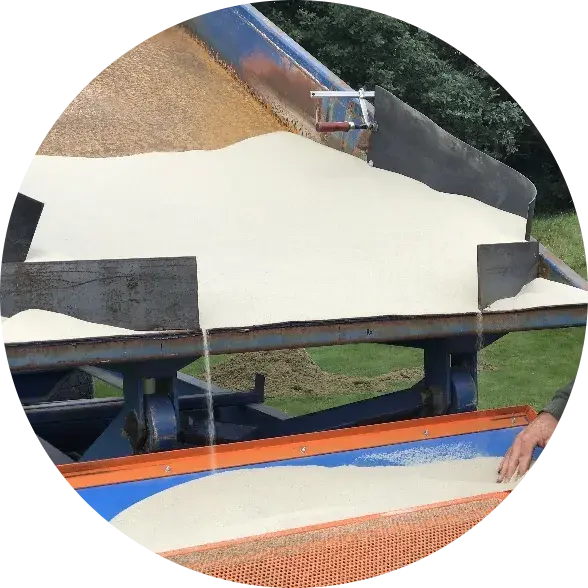

Hydraulic sand conveyor

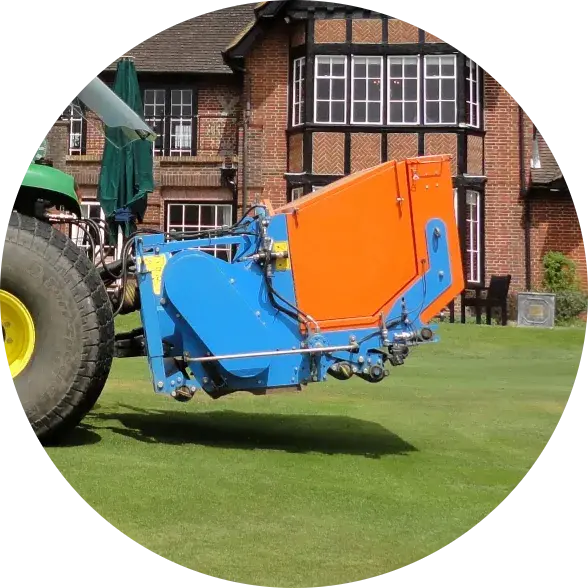

Oscillating press rollers

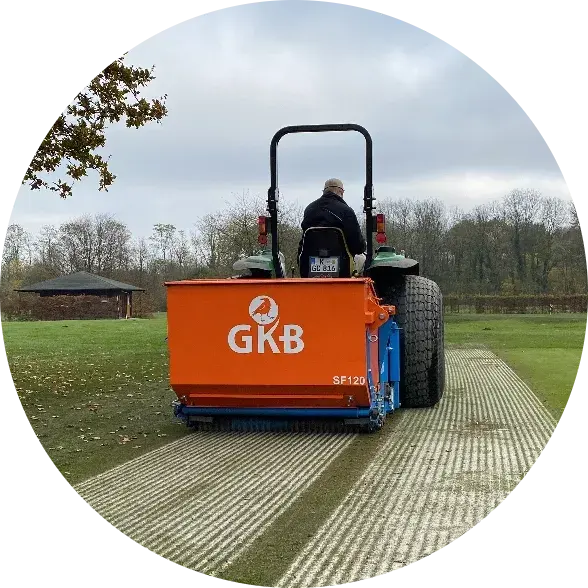

Based on Combinator design
Gallery
Specs
| Type | Working width | Bunker capacity | Dimensions (LxWxH) | Weight | Power requirement |
|---|---|---|---|---|---|
| SF120 | 120 cm / 47" | 120 liter / 32 gal | 160 x 180 x 120 cm / 63 x 71 x 47" | 620 kg / 1370 lbs unladen | 40 - 60 hp (+ creeper gear) |
HOW IT WORKS

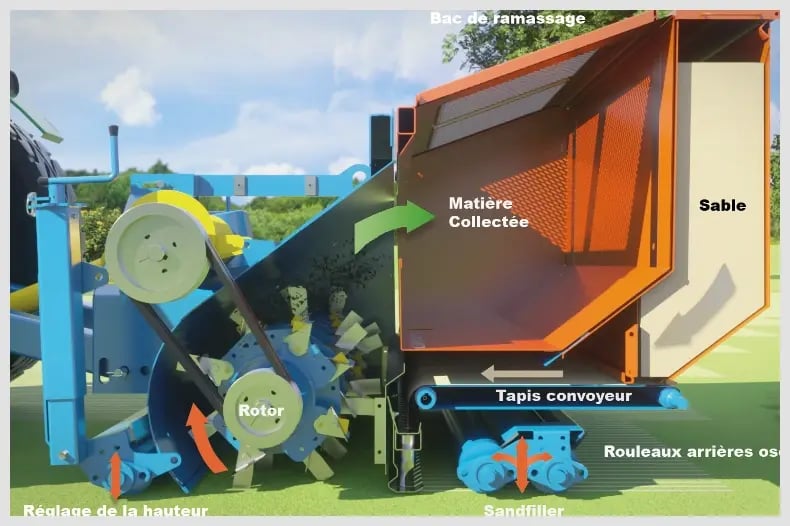

The Sandfiller begins by using a scarifying rotor to mill narrow grooves into the turf. Integrated vanes blow the loosened material into a sideways-tipping collection container, clearing the surface in real time. Next, a hydraulic conveyor system delivers dried sand (or a sand/seed mixture) from the hopper to fill the grooves with precision. Finally, oscillating rollers press the turf flat, leaving a smooth, playable surface that’s immediately ready for use.
WHAT MAKES IT DIFFERENT
Unlike traditional methods that require multiple machines and several operators, the Sandfiller allows a single person to complete scarifying, sand-filling, and even reseeding in one seamless operation. Its design builds on the proven technology of the GKB Combinator, with a wind-generating rotor and efficient slot-filling mechanics. Perfect for golf courses and high-performance turf areas, the Sandfiller dramatically reduces downtime while enhancing turf health, drainage, and recovery.
